Introduction
ECOSOM solar stations are easy-to-install pumping units that can be used wherever there is good solar radiation. The solar panels supplied with both ECOSOM “E ” and “I” solar stations recharge the batteries thus to provide energy even when no solar light is available. ECOSOM “L ” solar stations can run exclusively with solar light since they use, direcly, the energy coming from the solar panels. ECOSOM solar stations can be combined with electric pumps type SR (for clean water) or SEMISOM (for grey or sewage water), all equipped with 24V DC permanent magnets motors.
Introduction
The solar stations IDROSOLAR allow pumping water from a well with complete autonomy and can be easily installed anywhere there is a good solar radiation. Using the sunlight, they can produce the energy required to run the electric pump. The number of revolutions of the pump is continuously adapted to available radiation, thus maximizing the flow of the water pumped. (MPPT function: Maximum Power Point Tracking). When radiation levels increase so do the revolutions of the pump and, consequently, the flow rises. When the radiation decreases, (clouds passing by or different times of the day) the revolutions of the pump get lower and thus its flow. However, the system continues to supply water until the radiation falls below the minimum necessary operation point. In addition, the system is completely protected against overvoltage, over current and lack of water.
Application
- To pump water from boreholes;
- Irrigation.
Flow
- up to 2400 l/min
Head
- up to 383 m
Power
- from 0,75 KW to 30 KW
Application
- To pump water from tanks, reservoirs and boreholes;
- To pressurize civil plants;
- Small irrigation.
Flow
- from 6 to 80 l/min
Head
- from 7 to 38 m
Power
- 0,75 HP
- 0,55 KW
Application
- To expel rainwater and waste water coming from electric household appliances;
- To drain tanks, cellars and garages;
- To transfer water from pools and fountains;
- Irrigation.
Flow
- from 30 to 300 l/min
Head
- from 0,5 to 11 m
Power
- from 0,5 to 0,75 HP
- from 0,37 to 0,55 KW
Solids passage
- up to 13 mm

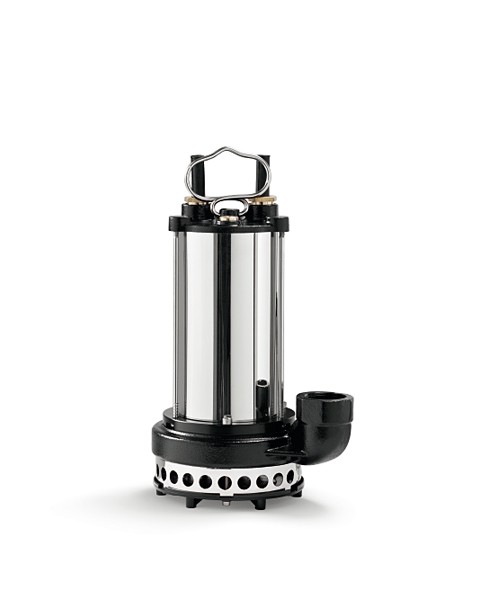

Application
- To expel rain water, convey waste and sewage water from septic tanks;
- To pump liquids containing solids (vortex or double channel impeller) and filaments (double channel impeller).
Flow
- from 100 to 400 l/min
Head
- from 1 to 9 m
Power
- 0,75 HP
- 0,55 KW
Solids passage
- up to 40 mm
