121 / 132
121
810 mm
1700 mm
1200 mm
1200 mm
1530
1500 mm
1580 mm
30°
810 mm
1700 mm
1200 mm
1200 mm
1530 mm
1500 mm
1580 mm
30°
CONTROL PANEL
Characteristics
IP rating IP44
Ambient temperature -5/+40 °C
Suitable for external installation
Possibility of installing it to the base of the fixing frame
Easy-to-inspect battery location
Facility to wire float switches for dry running protection
Facility to wire pressure switch, stop and run float switch, etc.
Main components
Fibreglass cabinet
Hand - off - auto selector switch
30 A unipolar thermal protector switch
80 A power relay
Indicator light for: run - pump cut-out - low battery cut-out
20 A automatic charge controller to provide the correct power
to the batteries
Fuse holder with fuses on both main and auxiliary circuit
ACCESSORIES
Code
Description
07210005
FRAME:
designed for open-space, land installations
with an angle of incidence at 30º.
The installation is easy and quick and doesn’t require
particular tools. All components are in aluminium
or stainless steel and their high resistance gives
them a long life.
02086005
BATTERY 12 V 100 Ah:
100 Ah 12 V AGM Long-Life, monobloc, stationary
Maintenance-free; 120 minutes life with no light
(160 minutes for ECOSOM 190); 8 hours to charge
them totally, with pump in stand-by.

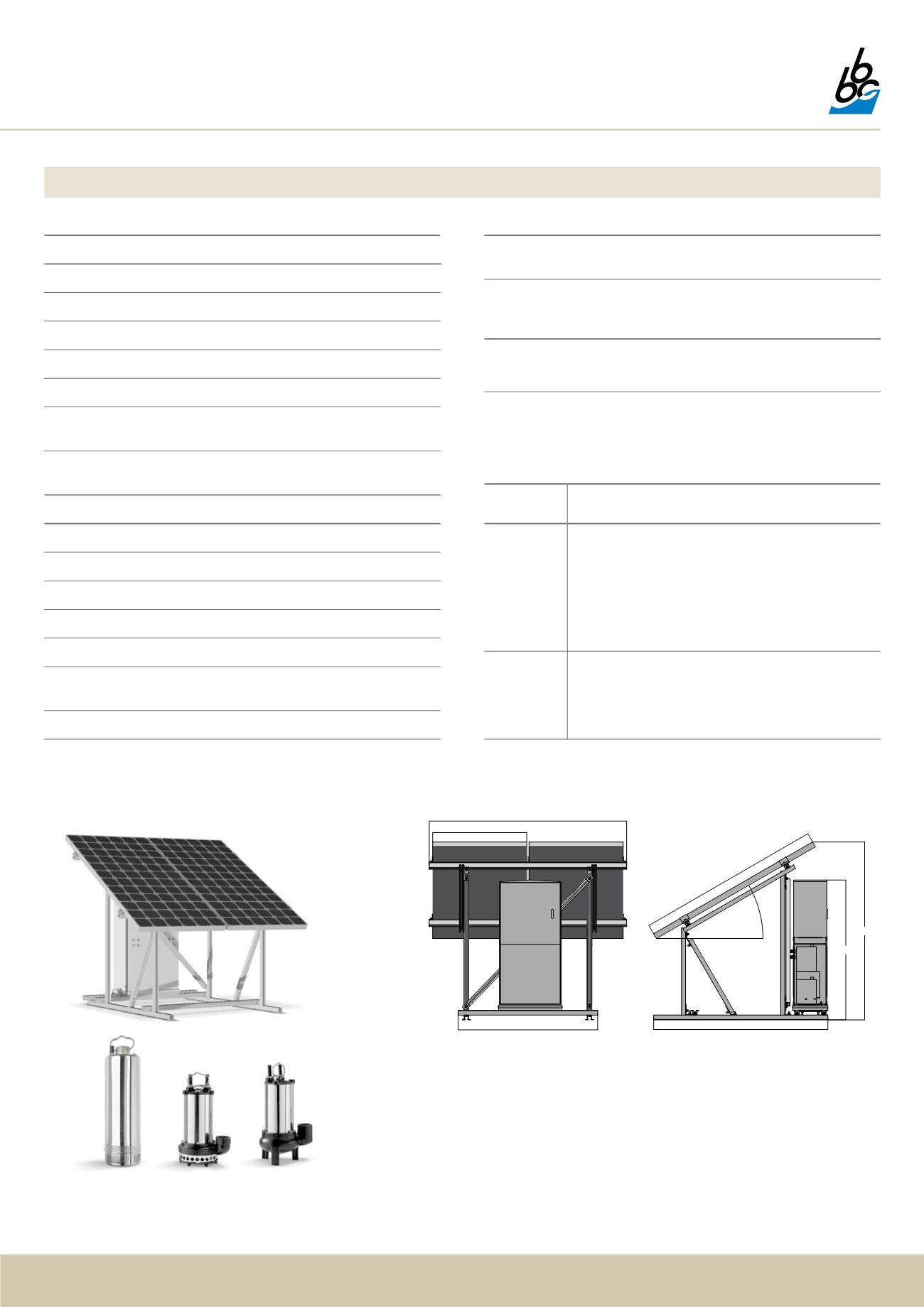

ECOSOM E with fibreglass cabinet for external installations
SOLAR MODULES
2 x 180 Wp (+/- 3%) monocrystalline silicon solar cells supplied
with fixing bars and frame
ELECTRIC WIRING
The pumping station is supplied with: all cables (pre-wired)
for the electric connection of the solar modules, the control panel
and the batteries
