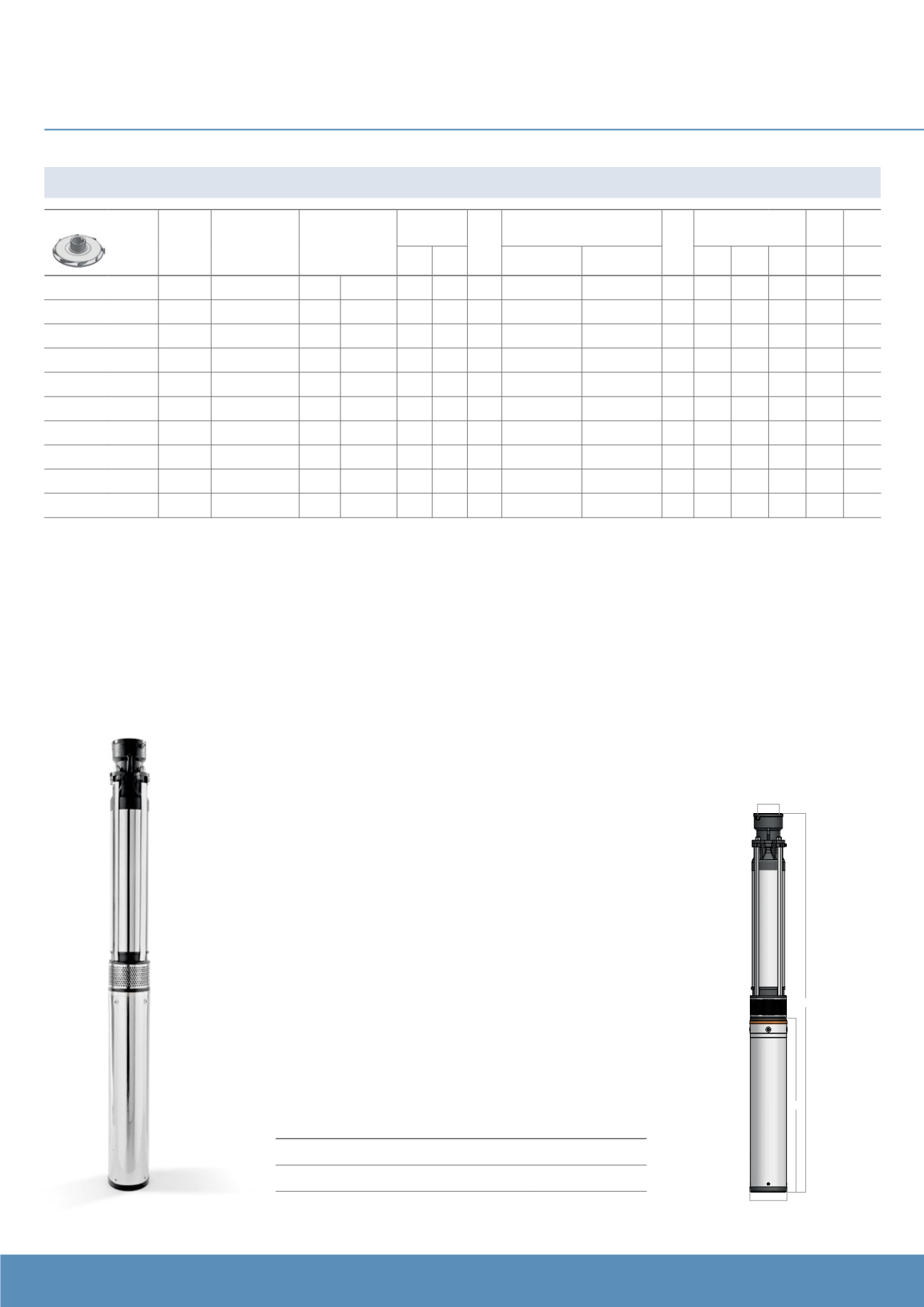

Electric submersible pumps IDROSAND series 230
for 6" boreholes
OPTIONS FOR 6" MOTORS
Version for star-delta motors 400/690 V
Version with brass motor body
Radial impeller
Pump
Code
Motor
Code
Version
P2
A
Flow
DNM
Dimensions (mm) Cable Weight
hp kW
l/min
m
A B C m kg
IDROSAND 6/230
P230/06 M4T40
400 V 3-phase 4 3 7 90 - 150 - 270 77 - 67 - 30 2" 1217 531 146 2 33,6
IDROSAND 8/230
P230/08 M4T55
400 V 3-phase 5,5 4 9,4 90 - 150 - 270 106 - 91 - 39 2" 1345 587 146 2 38,3
IDROSAND 9/230
P230/09 M4T55
400 V 3-phase 5,5 4 9,4 90 - 150 - 270 117 - 100 - 44 2" 1381 587 146 3 38,9
IDROSAND 11/230
P230/11 M4T75
400 V 3-phase 7,5 5,5 12 90 - 150 - 270 144 - 122 - 54 2" 1538 672 146 3 61,5
IDROSAND 14/230
P230/14 M4T100
400 V 3-phase 10 7,5 16 90 - 150 - 270 177 - 150 - 64 2" 1671 697 146 3 66
IDROSAND 17/230
P230/17 M6TA125/2 400 V 3-phase 12,5 9,2 20 90 - 150 - 270 225 - 194 - 85 2" 1804 722 146 3 71,3
IDROSAND 20/230
P230/20 M6TA125/2 400 V 3-phase 12,5 9,2 20 90 - 150 - 270 267 - 231 - 100 2" 1912 722 146 3 73
IDROSAND 24/230
P230/24 M6TA20/2 400 V 3-phase 20 15 29,5 90 - 150 - 270 317 - 274 - 120 2" 2191 857 146 3 91,8
IDROSAND 28/230
P230/28 M6TA20/2 400 V 3-phase 20 15 29,5 90 - 150 - 270 374 - 328 - 140 2" 2335 857 146 3 94,4
IDROSAND 34/230
P230/34 M6TA25/2 400 V 3-phase 25 18,5 37,7 90 - 150 - 270 454 - 396 - 166 2" 2663 897 146 3 103,4
Electric pumps supplied with 4” 'S' series motors up to 7,5 kW
PERFORMANCE DATA - 2 poles 60 hz
